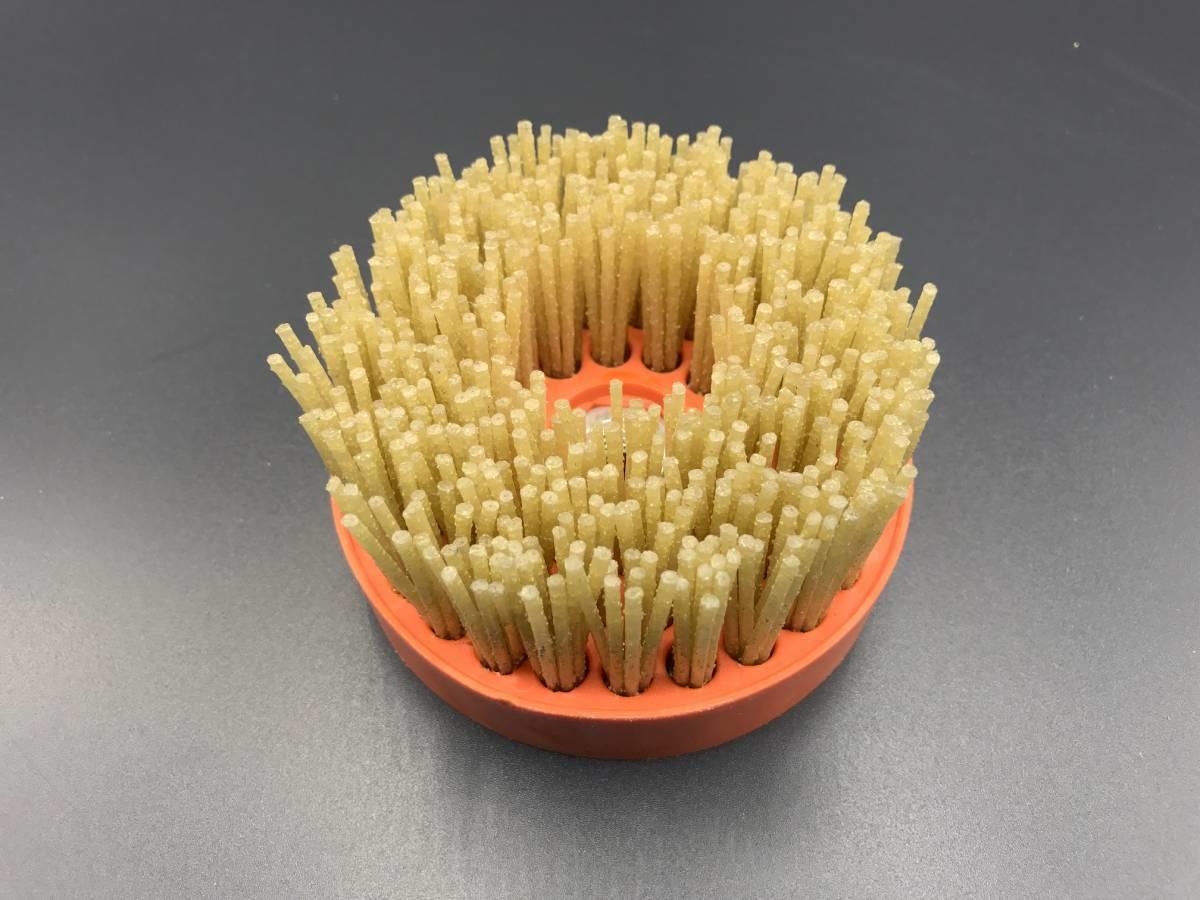

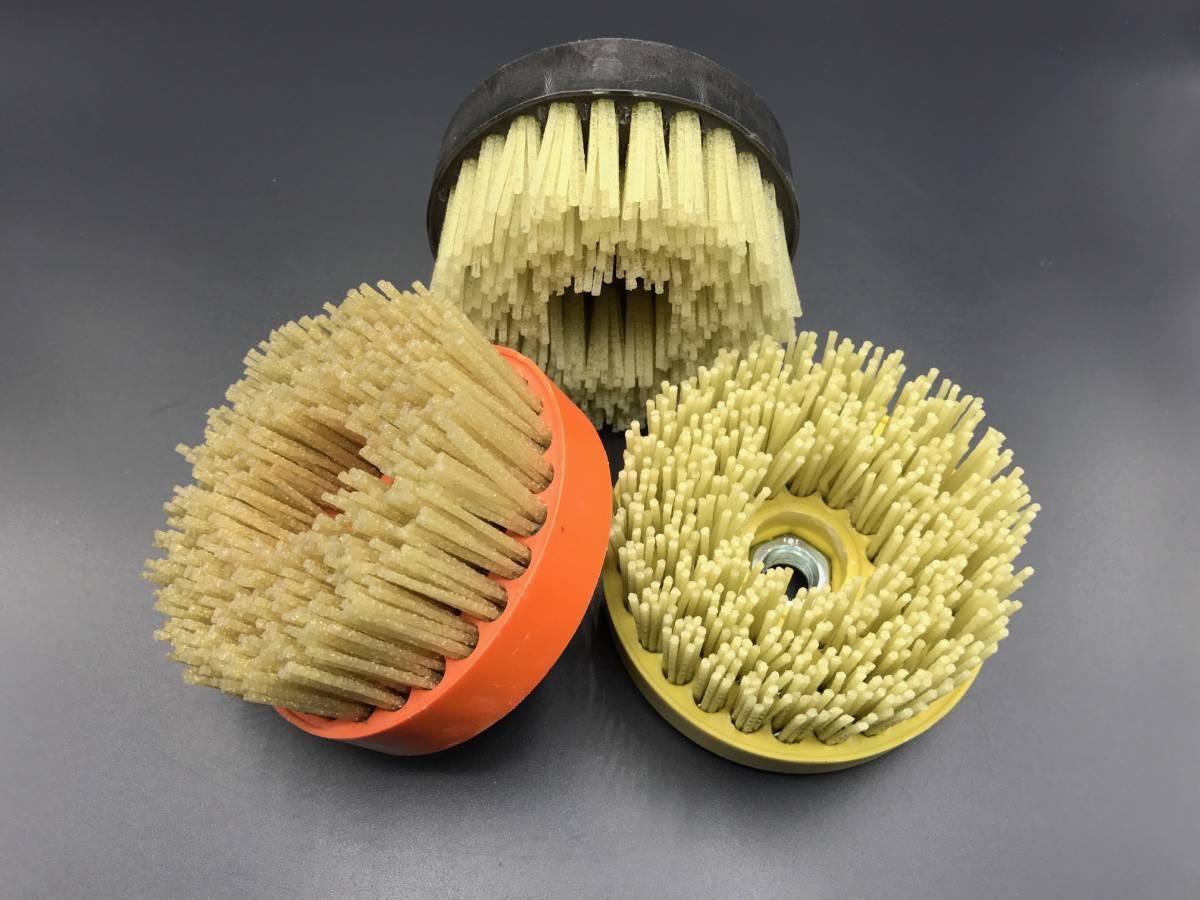

FRONTAL BRUSH FIDIFLEX D.100mm

Frontal brush with diamond wire in circular shape d.100mm on straight edges for processing with manuals machines.

RECOMMENDATIONS:
Brushes should be used at a maximum speed of 2000/2400 RPM

*Resin application:
The 30-40-60-80-120 grains are always resined.
While the grains from 180 onwards are always not resined.

PRODUCT TECHNICAL DATA

TABLE OF GRITS, COLORS AND CODES:

ATTACHMENTS
GRITS	SNAIL+M14 o 5/8	M14
30	T3FD10030	T3FD10030M14
40	T3FD10040	T3FD10040M14
60	T3FD10060	T3FD10060M14
80	T3FD10080	T3FD10080M14
120	T3FD100120	T3FD100120M14
180	T3FD100180	T3FD100180M14
230	T3FD100230	T3FD100230M14
320	T3FD100320	T3FD100320M14
400	T3FD100400	T3FD100400M14
600	T3FD100600	T3FD100600M14
800	T3FD100800	T3FD100800M14
1000	T3FD1001000	T3FD1001000M14
1200	T3FD1001200	T3FD1001200M14
1500	T3FD1001500	T3FD1001500M14
1800	T3FD1001800	T3FDD1001800M14
3500	T3FD1003500	T3FD1003500M14

Request information

* mark a required field

Customer's consent to the processing of data by MASTER SURFACE TECHNOLOGY. The customer declares to have read the privacy note and expresses its free and informed consent to the processing of personal data for the purposes specified therein.
* I have read and I accept the terms and conditions

MATERIAL:

Stone

MACHINE:

Manual machines

FINISHING:

Brushed

PRODUCT TECHNICAL DATA

DIAMETER:

100mm

AVAILABLE ATTACHMENTS:

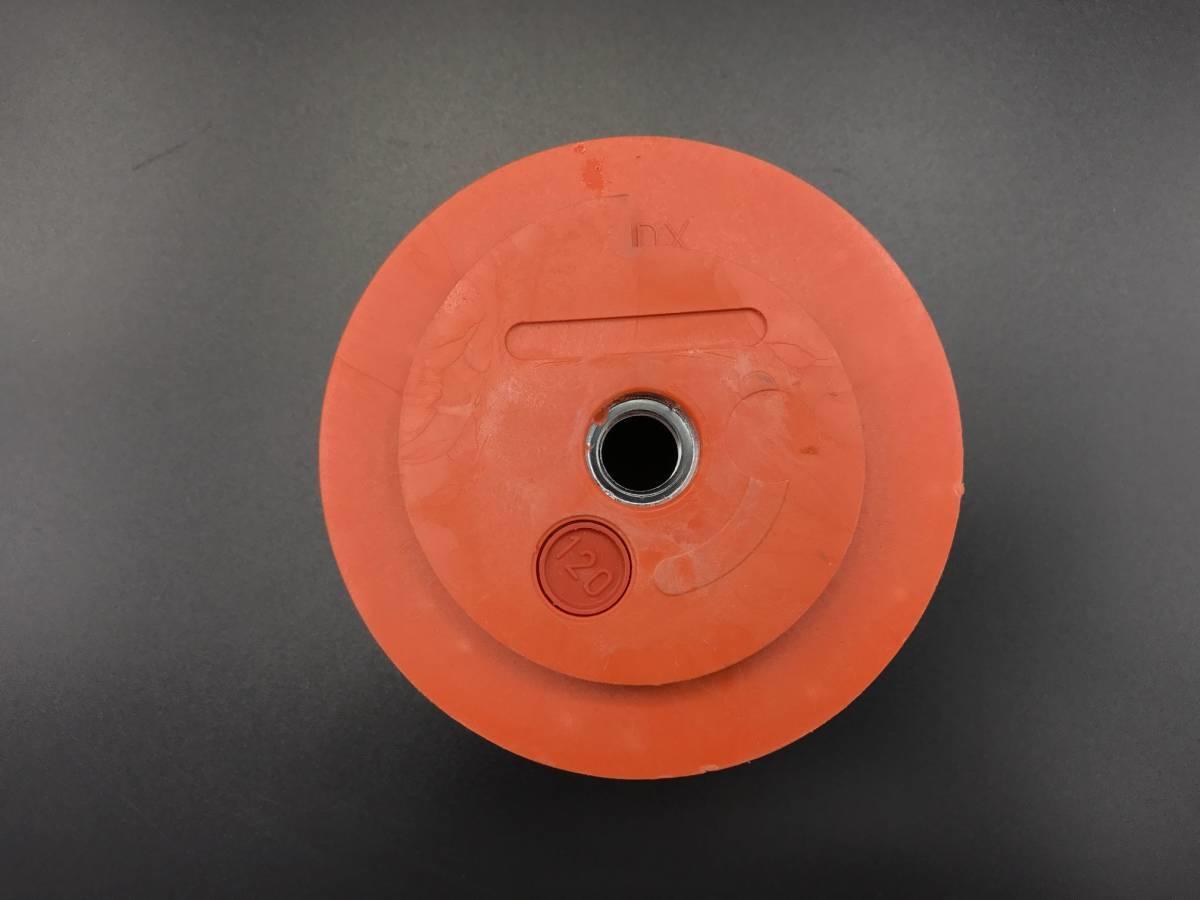

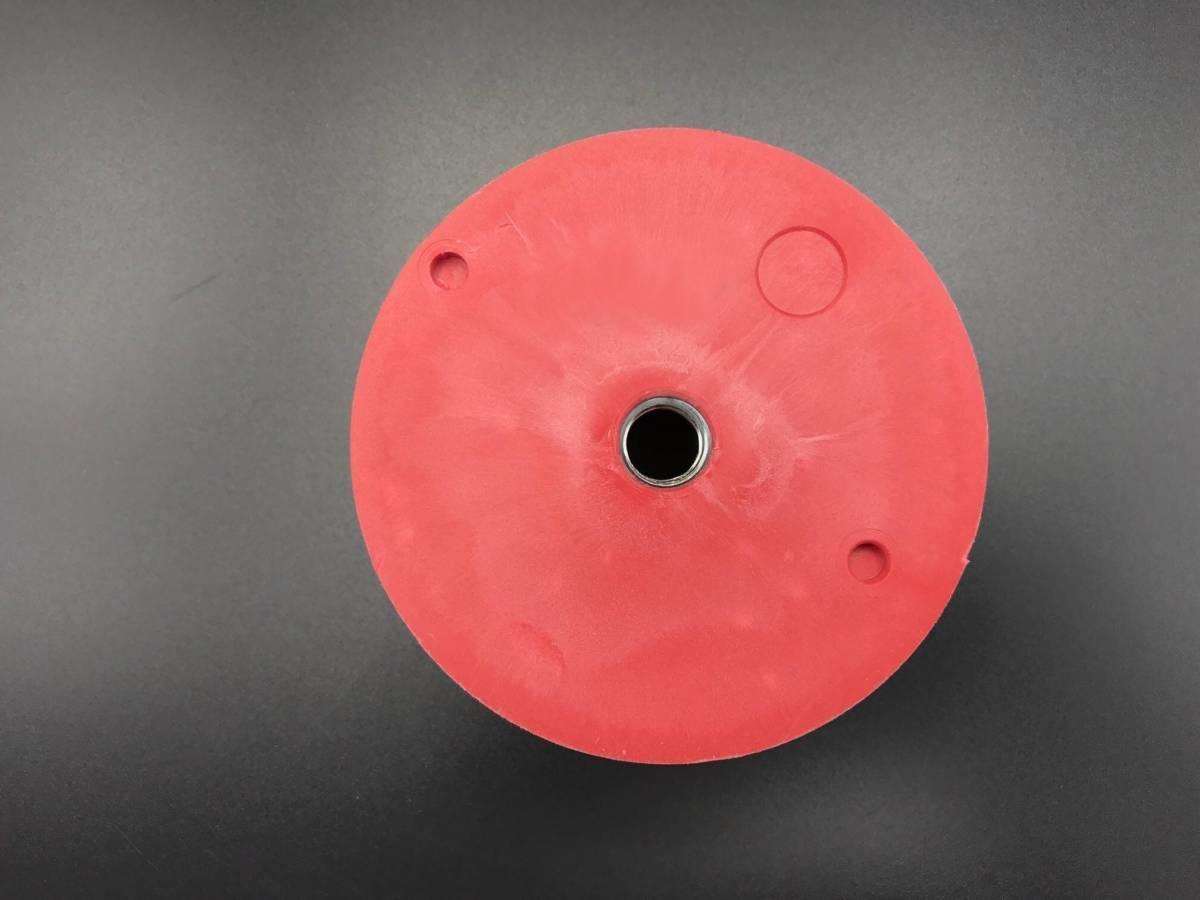

Snail+M14; Snail+5/8; M14

TOTAL HEIGHT WITH M14:

52mm

TOTAL HEIGHT WITH SNAIL+M14:

60mm

WIRE:

Nylon loaded with diamond powder

HEIGHT OF THE WIRE:

30-32mm

SUPPORT:

Plastic PVC

HEIGHT OF THE SUPPORT M14:

20mm

HEIGHT OF THE SUPPORT SNAIL+M14:

28mm

WEIGHT:

220 g
