FIDIFLEX FRONTAL BRUSH D.120mm AND 150mm

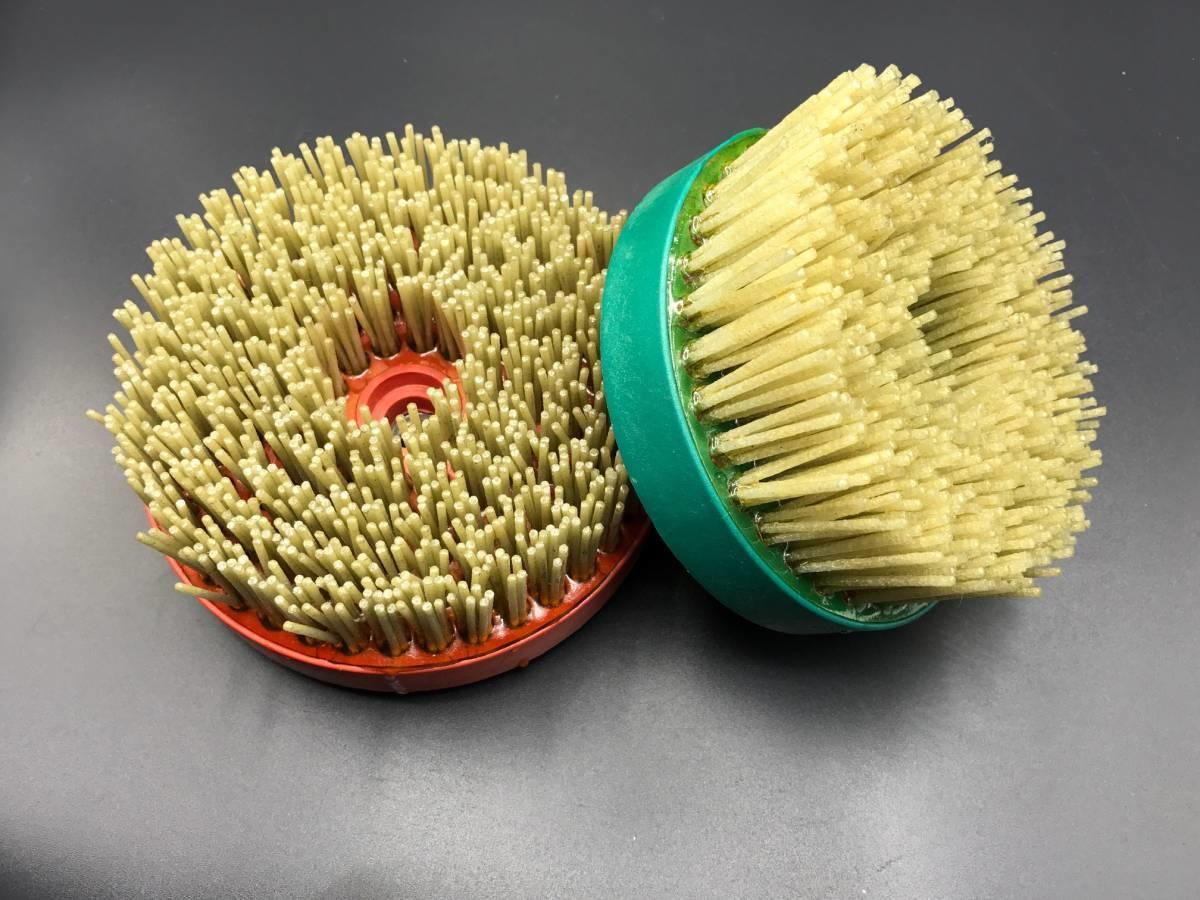

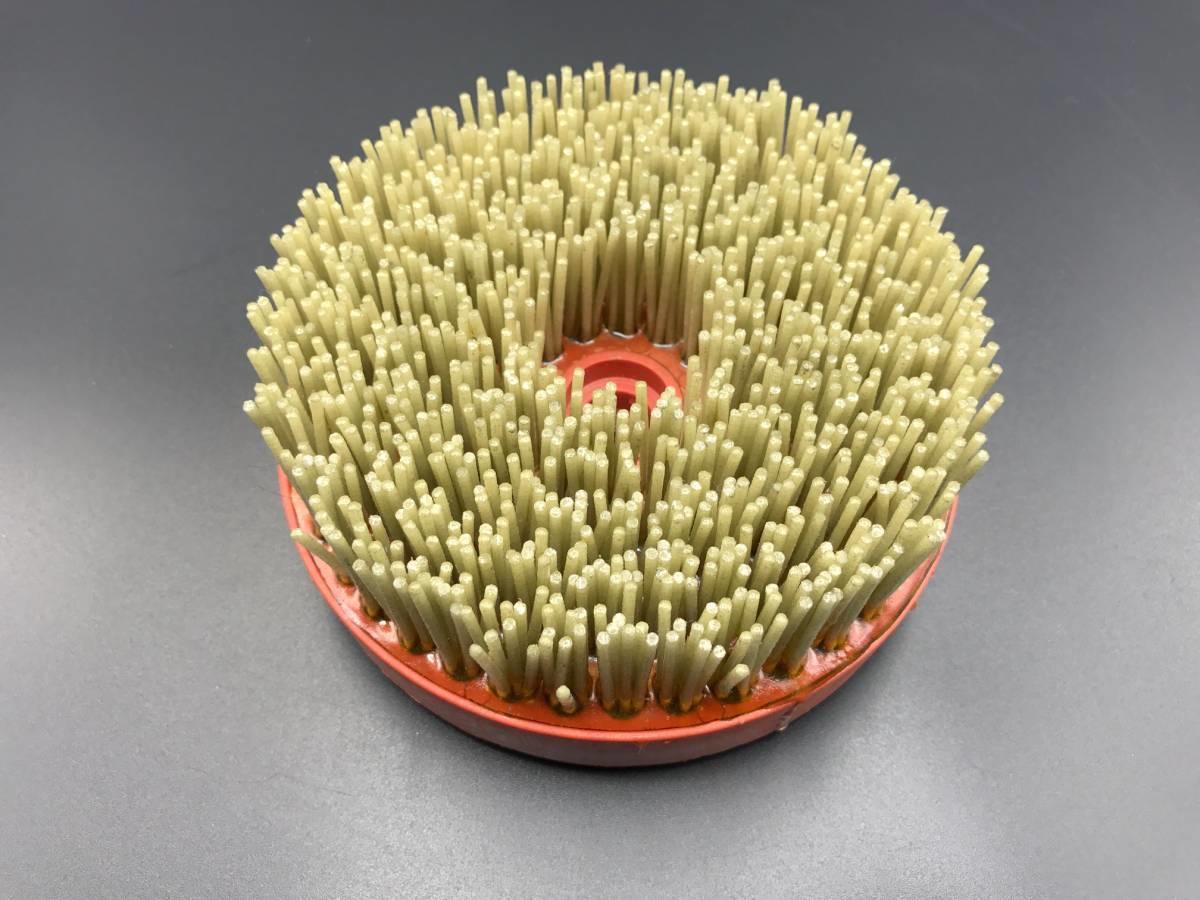

Frontal brush of diameter 120mm and 150mm with diamond wire achieving antique and brushed finish on flat surfaces, straight and round edges.

*Resin application:
The 30-40-60-80-120 grains are always resined.
While the grains from 180 onwards are always not resined.

PRODUCT TECHNICAL DATA

TABLE OF GRITS, COLORS AND CODES OF D.120mm:

ATTACHMENTS D.120
GRITS	SNAIL+M14 or 5/8	SNAIL	TERZAGO
30	T3FD12030	T3FD12030C	T3FD12030T
40	T3FD12040	T3FD12040C	T3FD12040T
60	T3FD12060	T3FD12060C	T3FD12060T
80	T3FD12080	T3FD12080C	T3FD12080T
120	T3FD120120	T3FD120120C	T3FD120120T
180	T3FD120180	T3FD120180C	T3FD120180T
230	T3FD120230	T3FD120230C	T3FD120230T
320	T3FD120320	T3FD120320C	T3FD120320T
400	T3FD120400	T3FD120400C	T3FD120400T
600	T3FD120600	T3FD120600C	T3FD120600T
800	T3FD120800	T3FD120800C	T3FD120800T
1000	T3FD1201000	T3FD1201000C	T3FD1201000T
1200	T3FD1201200	T3FD1201200C	T3FD1201200T
1500	T3FD1201500	T3FD1201500C	T3FD1201500T
1800	T3FD1201800	T3FD1201800C	T3FD1201800T
3500	T3FD1203500	T3FD1203500C	T3FD1203500T

TABLE OF GRITS, COLORS AND CODES OF D.150mm:

ATTACHMENT D.150
GRITS	SNAIL+M14 o 5/8
30	T3FD15030
40	T3FD15040
60	T3FD15060
80	T3FD15080
120	T3FD150120
180	T3FD150180
230	T3FD150230
320	T3FD150320
400	T3FD150400
600	T3FD150600
800	T3FD150800
1000	T3FD1501000
1200	T3FD1501200
1500	T3FD1501500
1800	T3FD1501800
3500	T3FD1503500

Request information

* mark a required field

Customer's consent to the processing of data by MASTER SURFACE TECHNOLOGY. The customer declares to have read the privacy note and expresses its free and informed consent to the processing of personal data for the purposes specified therein.
* I have read and I accept the terms and conditions

MATERIAL:

Quartz-resin agglomerate

MACHINE:

Edge polishing machines

FINISHING:

Brushed

PRODUCT TECHNICAL DATA

AVAILABLE DIAMETERS:

120mm, 150mm

AVAILABLE ATTACHMENTS:

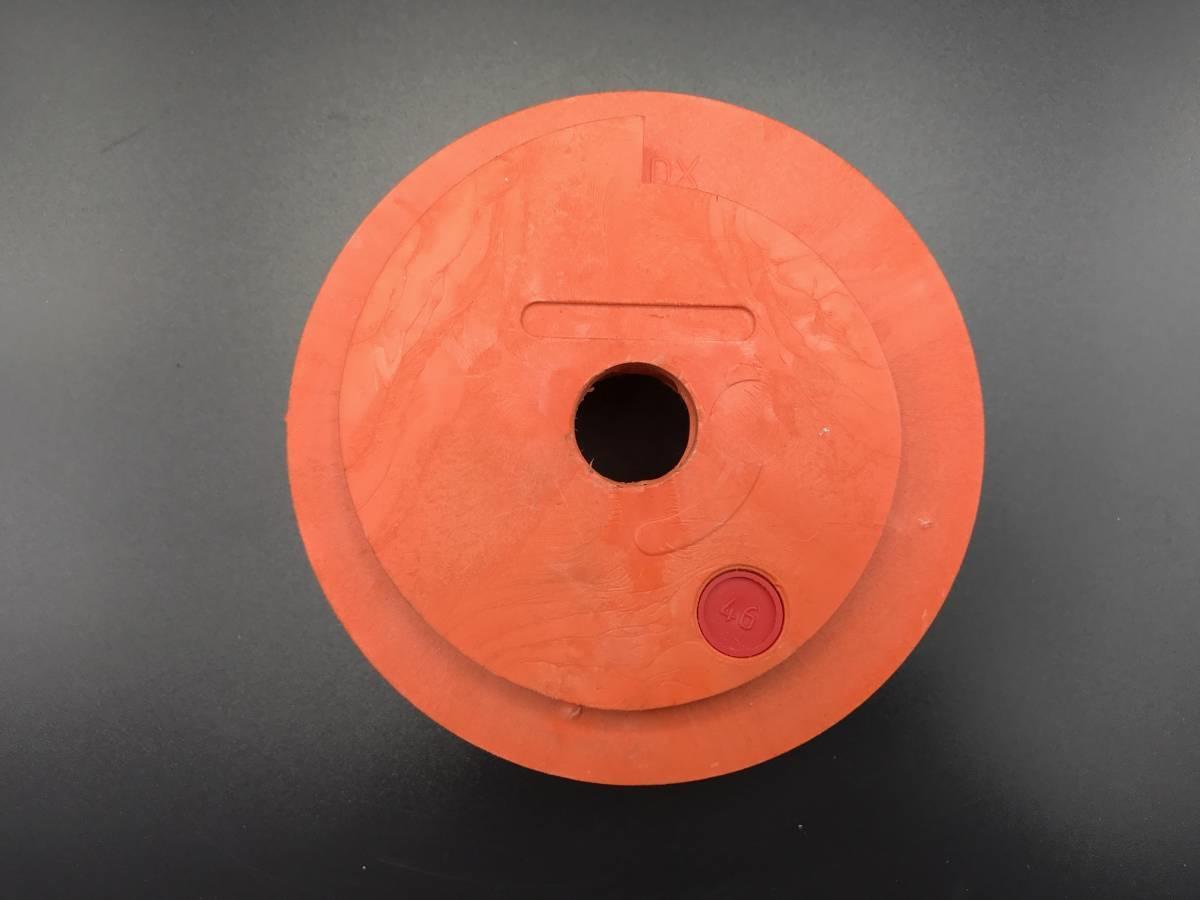

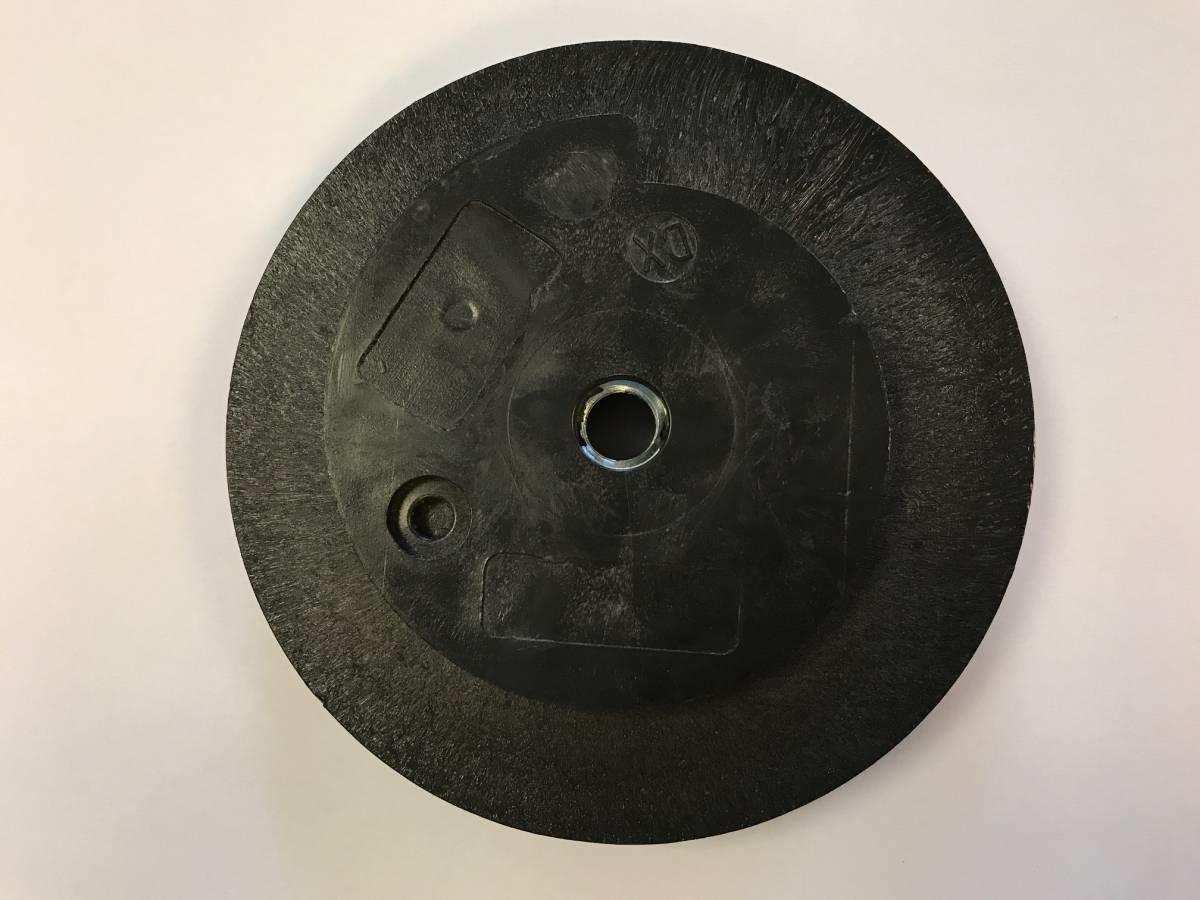

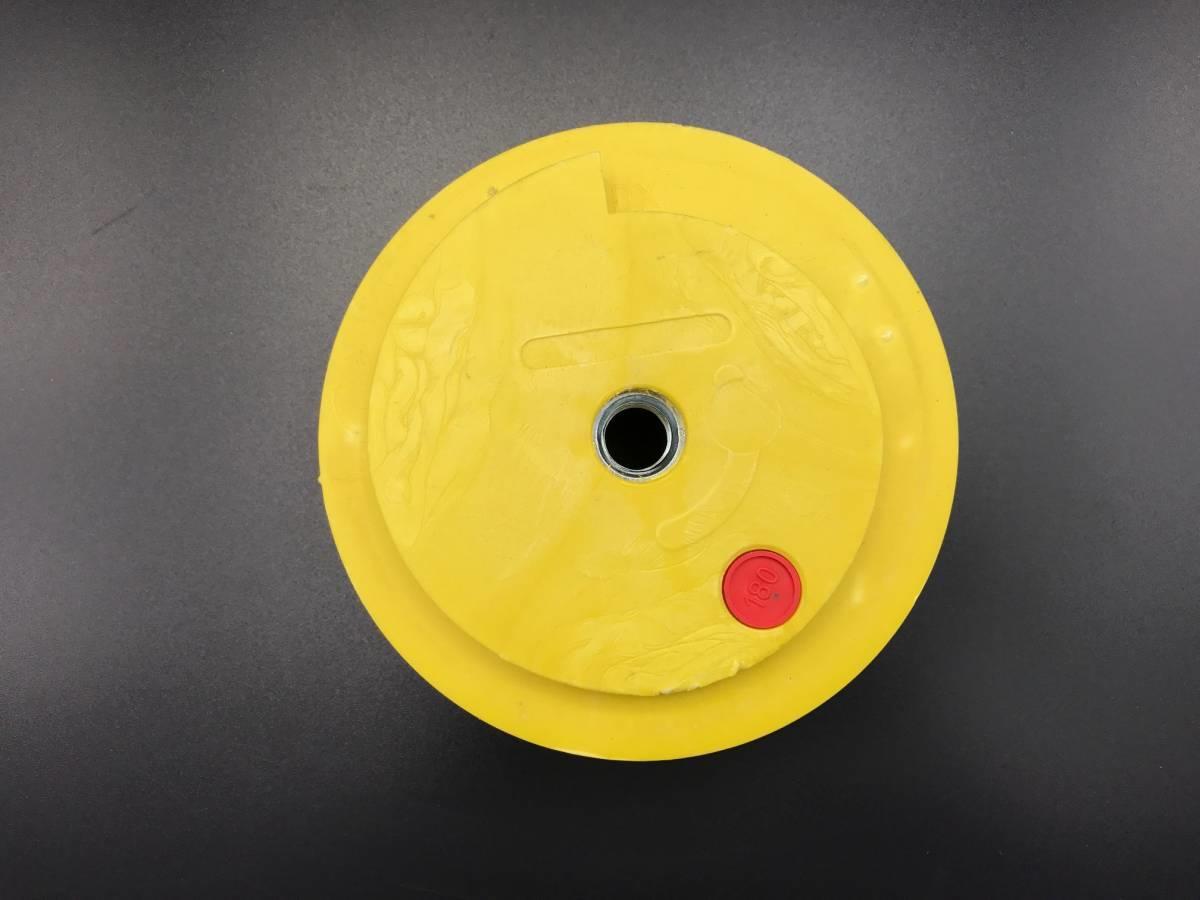

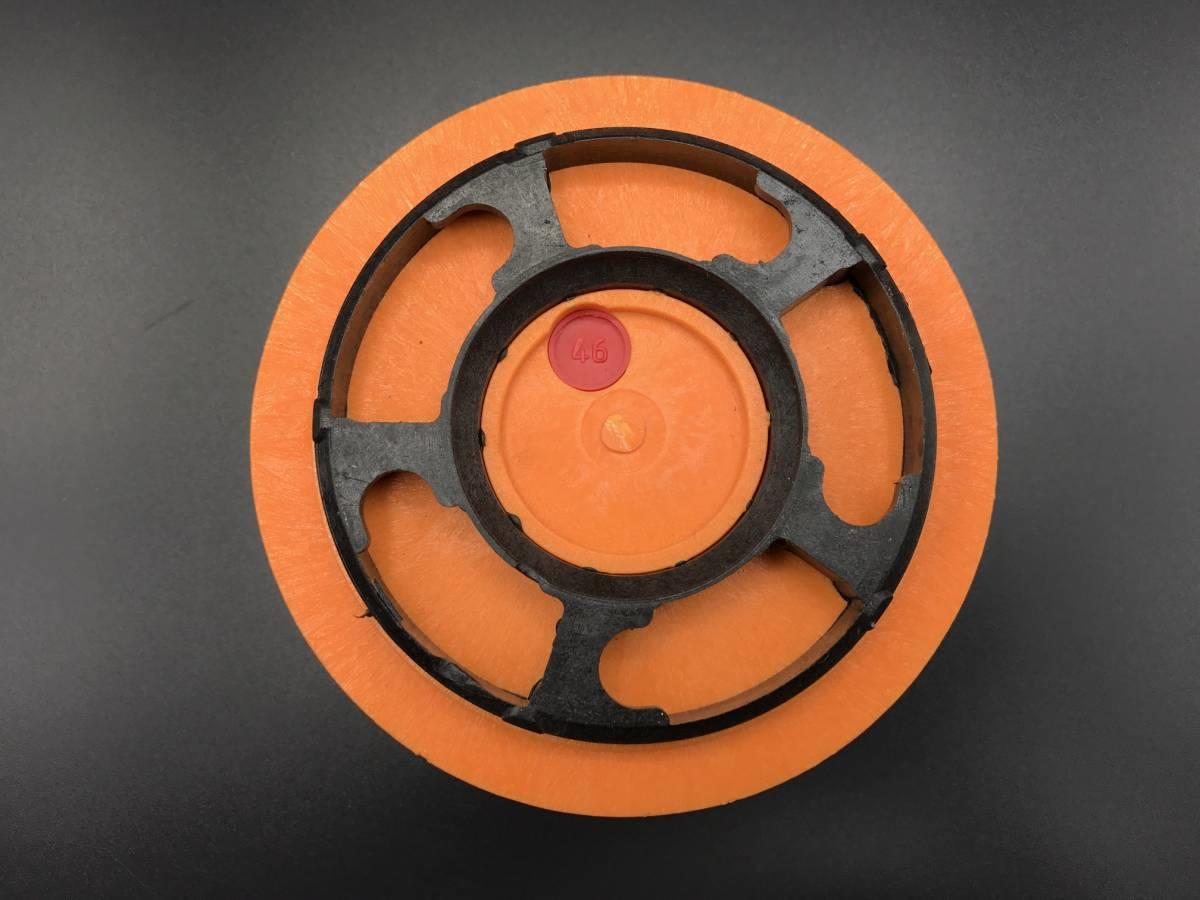

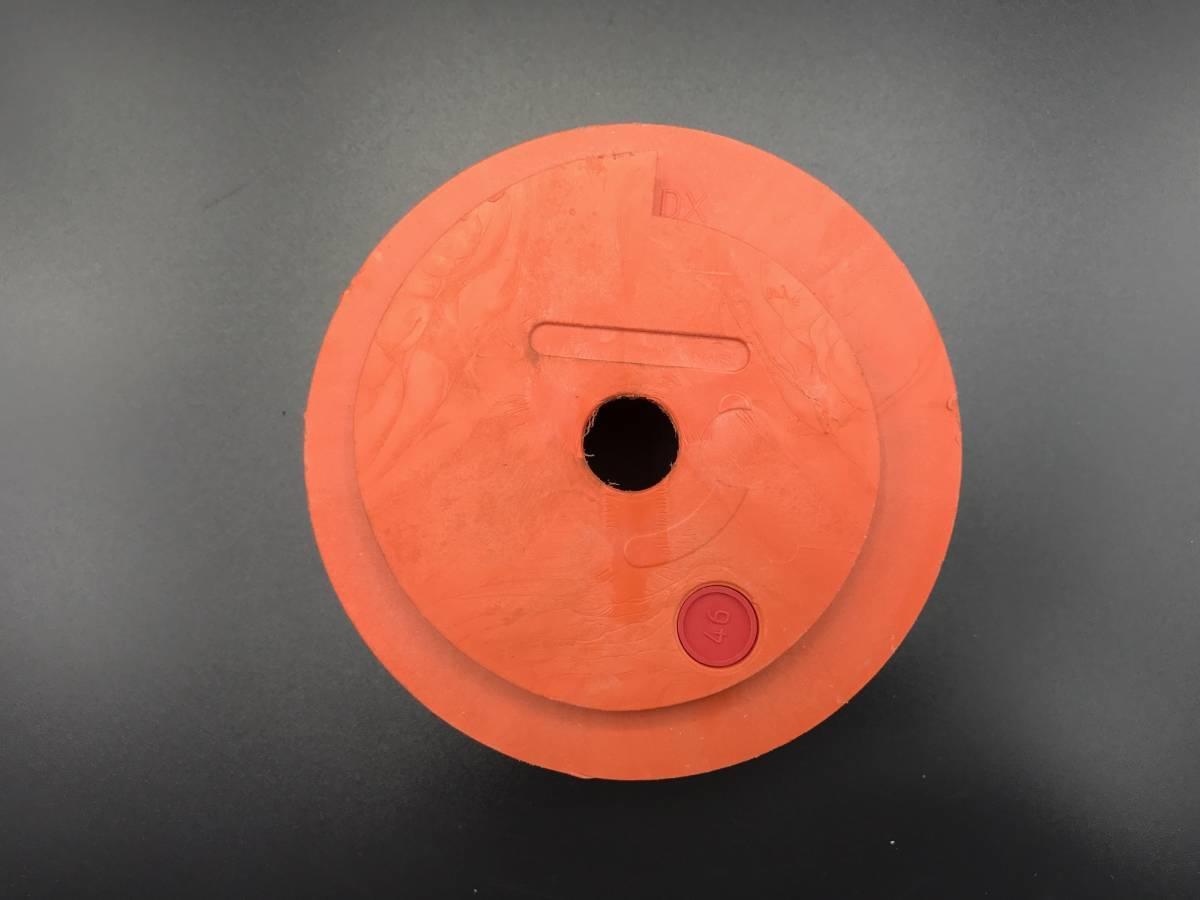

Snail+M14, Snail+5/8, Terzago

TOTAL HEIGHT WITH SNAIL+M14/TERZAGO ATTACHMENT:

60mm

WIRE:

Nylon loaded with diamond powder

HEIGHT OF THE WIRE:

30-32mm

SUPPORT:

Plastic PVC

HEIGHT OF THE SUPPORT SNAIL+M14/TERZAGO:

28mm

WEIGHT D.120mm:

340 g

WEIGHT D.150mm:

600 g
